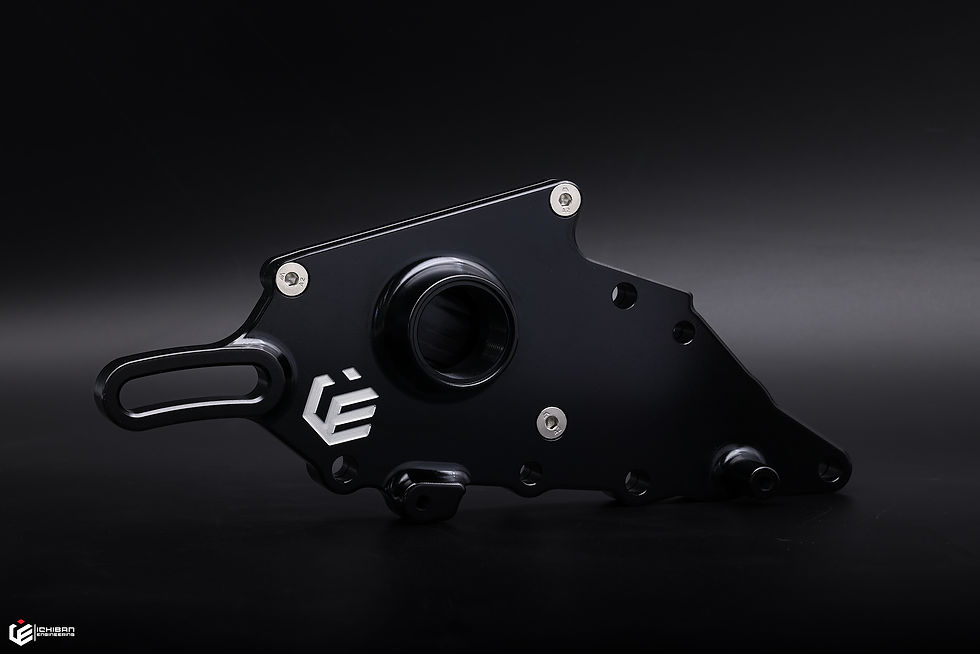

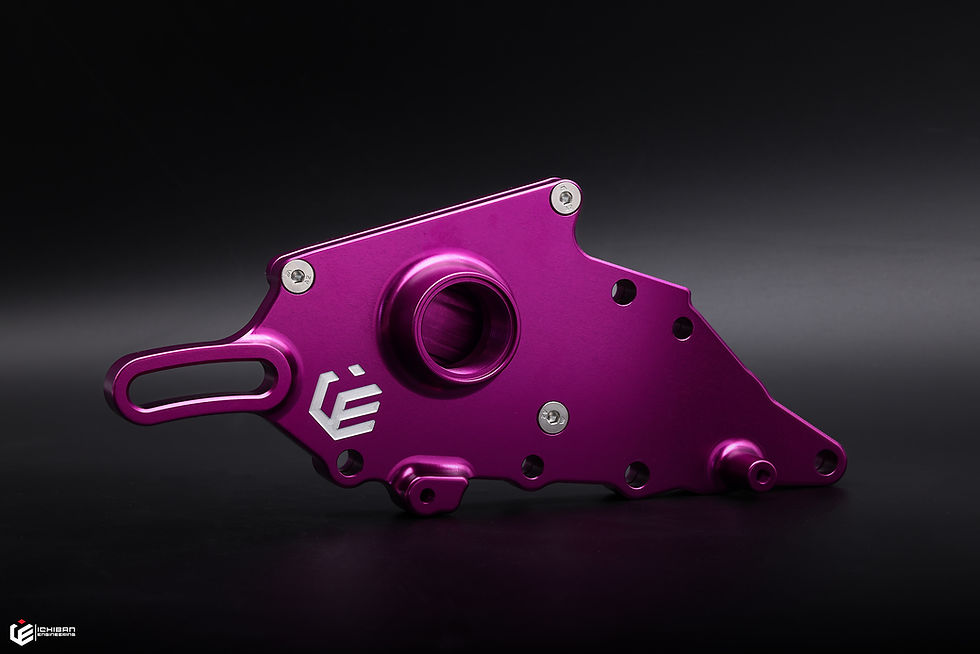

1JZ / 2JZ – Billet Water Inlet Alternator Bracket

Most 2JZ water pump delete brackets are never flow tested. This one was tested until it stopped being the problem.

Your electric pump makes a fixed amount of head, and every part in the loop spends it. A delete bracket is a duct, and an unmeasured duct can quietly eat half your budget before the block, heads and radiator see a drop. Nobody publishes that number, because measuring it means admitting it exists.

V2 is flow tested, not guessed. This 2JZ Alternator Bracket is validated to flow 130 L/min, with 47% less restriction than V1 - the internal flow path developed in CFD in Ansys Discovery and re-tested across three revisions before the first one was ever machined. That is what a 2JZ water pump delete bracket is supposed to do.

Want the full breakdown - every revision, every flow rate, and why pump flow ratings lie? Read the CFD data here.

Machined from 6061-T6 aerospace-grade billet aluminum for strength, rigidity and corrosion resistance the OEM cast assembly never had. Alternator mounting retained and properly aligned. A -16 ORB outlet that takes AN16 or AN20 fittings, so your cooling system routing isn’t dictated by the bracket.

An optional -6AN coolant port on the back handles turbocharger water feed, which cleans up plumbing on single turbo and custom setups. Optional ORB to AN adapter fittings are available separately.

Built for high-performance 1JZ and 2JZ builds running external electric water pumps - drag, drift, time attack, and high-horsepower street.

Key Features

Flow Tested to 130 L/min
47% less restriction than V1, developed in CFD in Ansys Discovery - measured, not claimed.
CNC-Machined 6061-T6 Billet Aluminum
Aerospace-grade billet for strength, rigidity and corrosion resistance.
Integrated Alternator Bracket Design
Coolant inlet and alternator mounting combined in one compact billet assembly.
Water Pump Delete Conversion
Replaces the factory mechanical water pump assembly for external electric pump setups.
-16 ORB Outlet Port
Takes AN16 or AN20 fittings for flexible cooling system routing.
Optional -6AN Turbo Coolant Feed
Rear port for turbocharger water feed on single turbo and custom setups.
Optional ORB to AN Fittings Available
Direct connection to AN16 or AN20 cooling hoses.
Direct Fit for JZ Platforms
Designed specifically for Toyota 1JZ and 2JZ engines.

If you are running a 1JZ water pump delete or 2JZ water pump delete, the bracket should be the part you stop thinking about.

The Ichiban Engineering 2JZ Alternator Bracket is designed and validated to not be the weak link in your cooling system.

⚙️ Fits Toyota 1JZ and 2JZ engines
📧 For technical questions or fitting assistance contact sales@ichiban.engineering
